- Industrial storage halls
- Date added 2006
Installation of a prefabricated hall with a steel structure for AGILE spol. s r.o.
| Construction locality | Vysoké Mýto |
| Construction purpose | Warehouse |
| Dimensions | 30 x 45 x 4,5 m |
| Type of prefabricated hall structure | Lightweight steel structure UT |

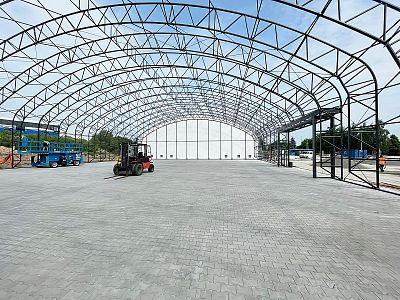

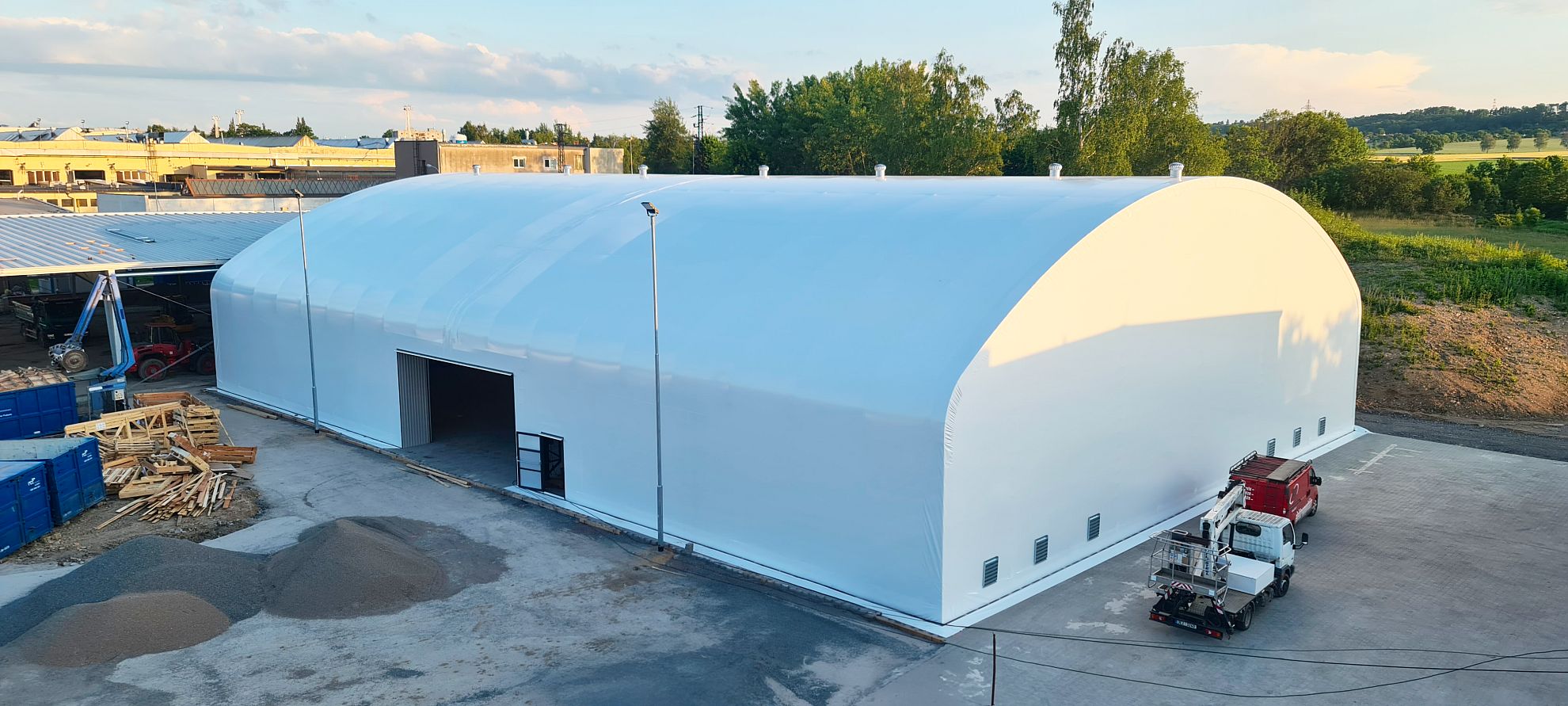

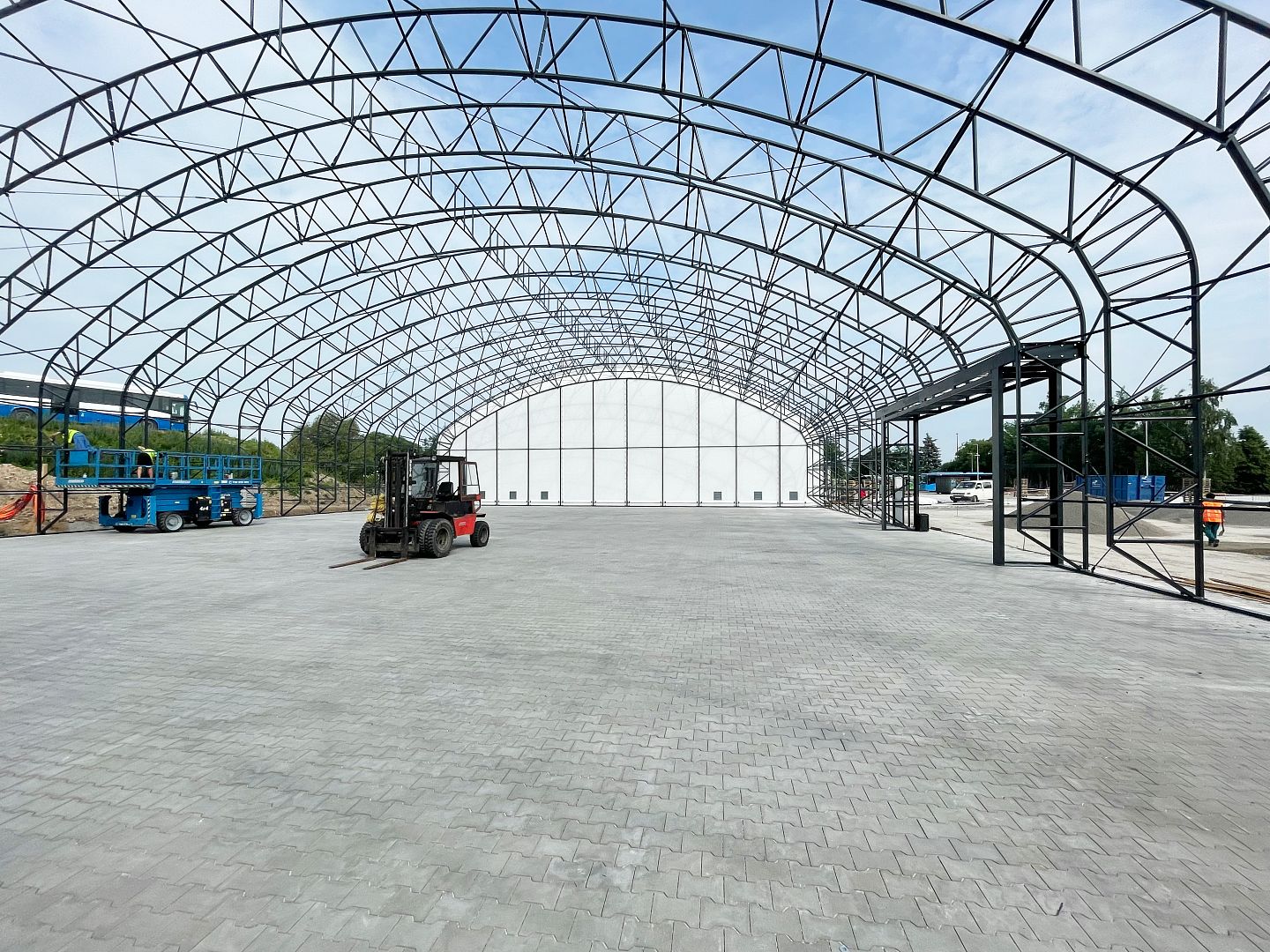

Prefabricated hall structure 30 x 45 m with an eaves height of 4.5 m.
built on existing interlocking paving with a compacted sub-base
lightweight steel structure type UT
PVC technical fabric cladding

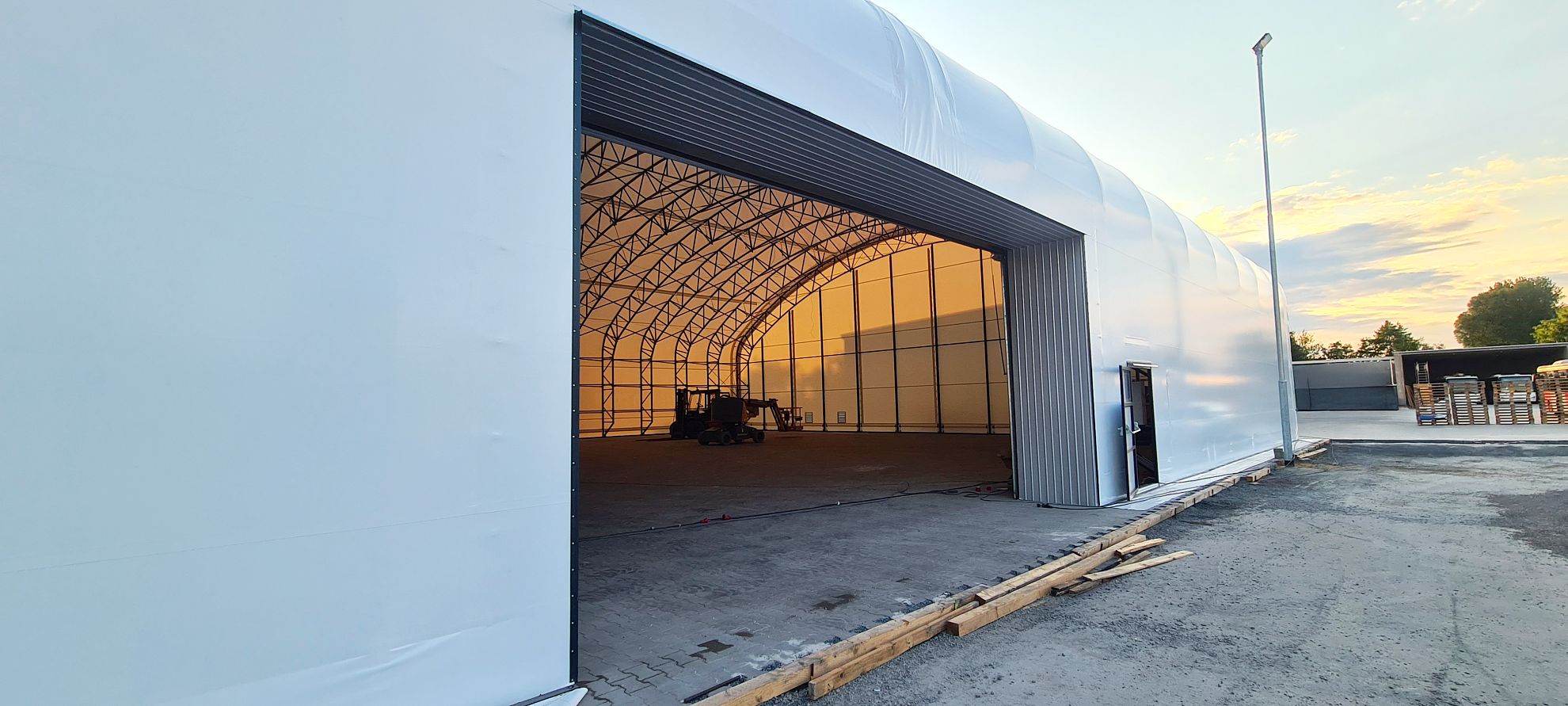

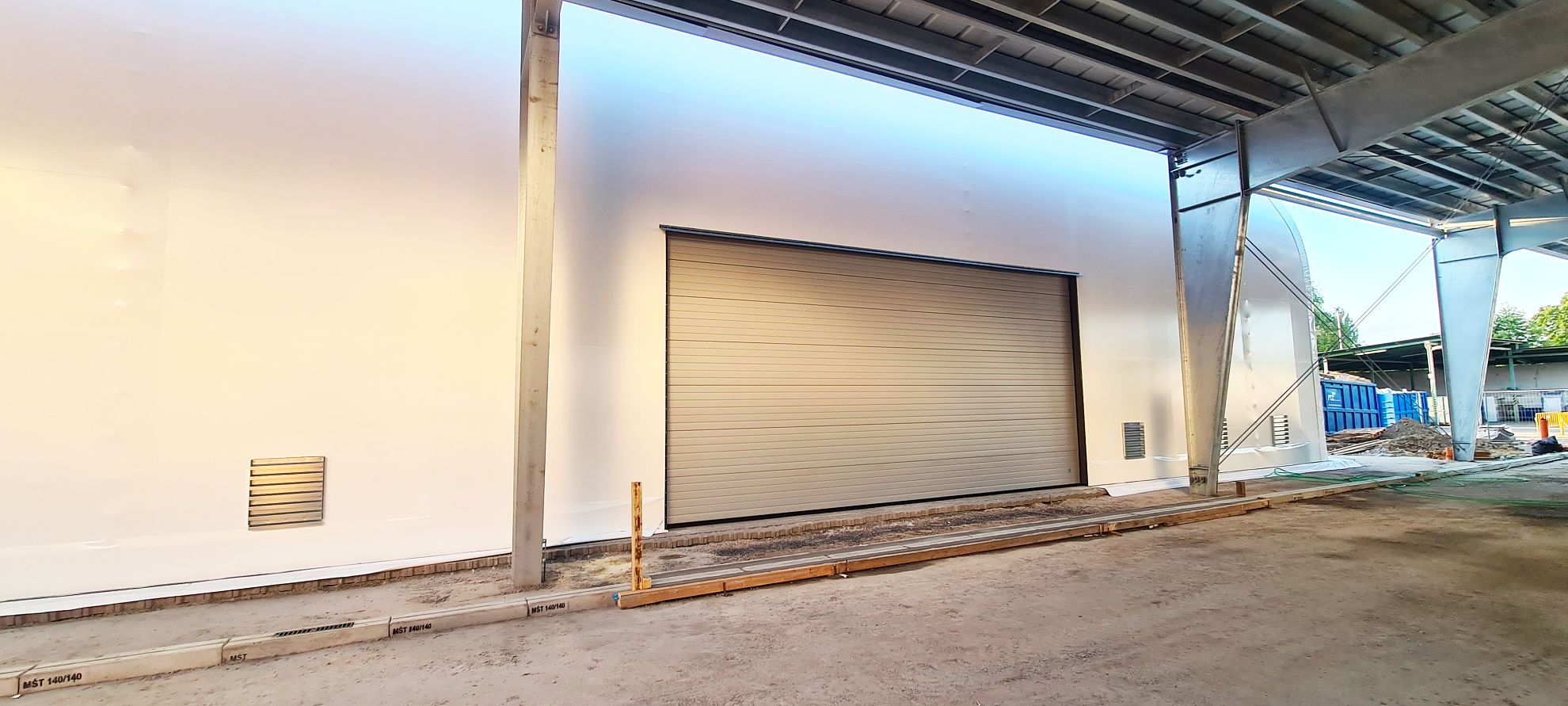

2x Zn sheet doors, 1.1 x 2.0 m – glazing strip + panic hardware; 1x sectional door 8.0 x 4.0 m at the front (high-lift track + 2x remote control); 1x sectional door 8.0 x 4.0 m on the side (track under the rafter + 2x remote control)
12x wall ventilation louvers
