- Industrial storage halls
- Date added 2006
Basic parameters of the prefabricated hall
| Purpose | Storage of plastic granulate for the production of plastic products |
| Dimensions | 20 x 35 x 4 m |
| Hall type | UT – hall with a steel structure |
Description of the prefabricated hall

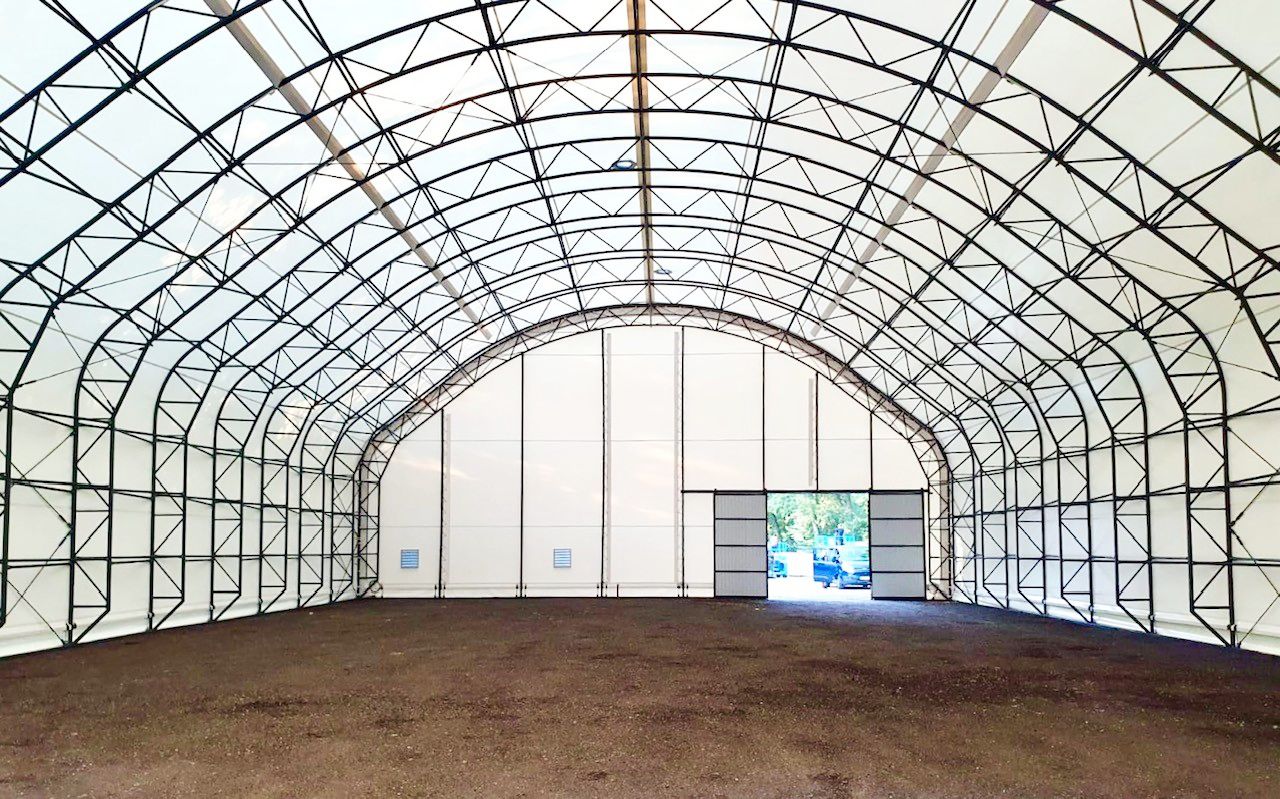

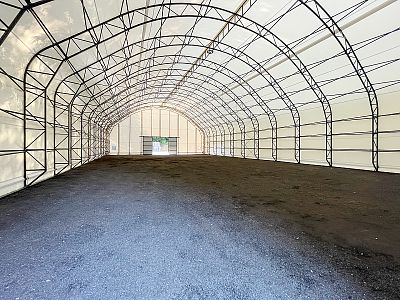

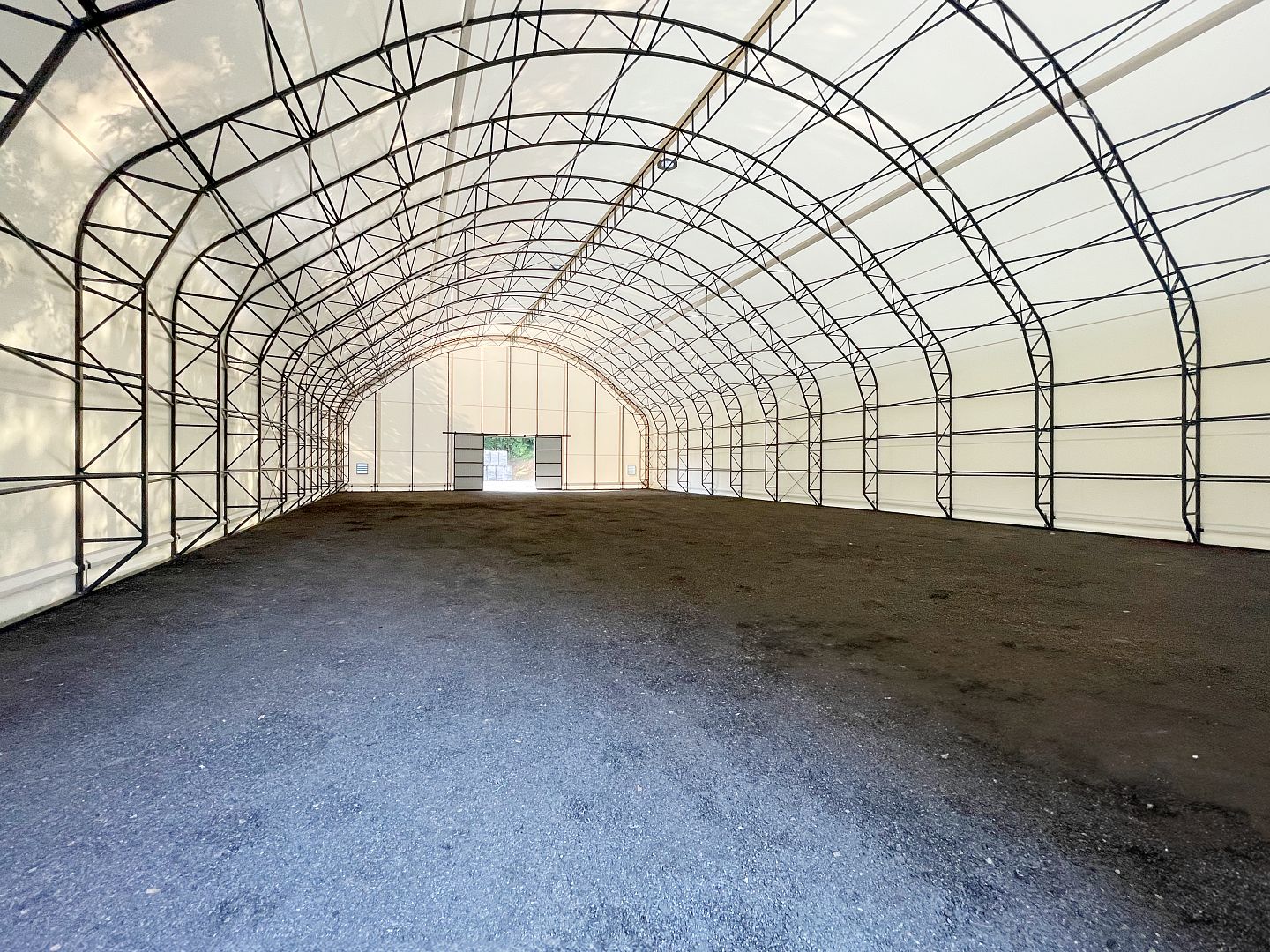

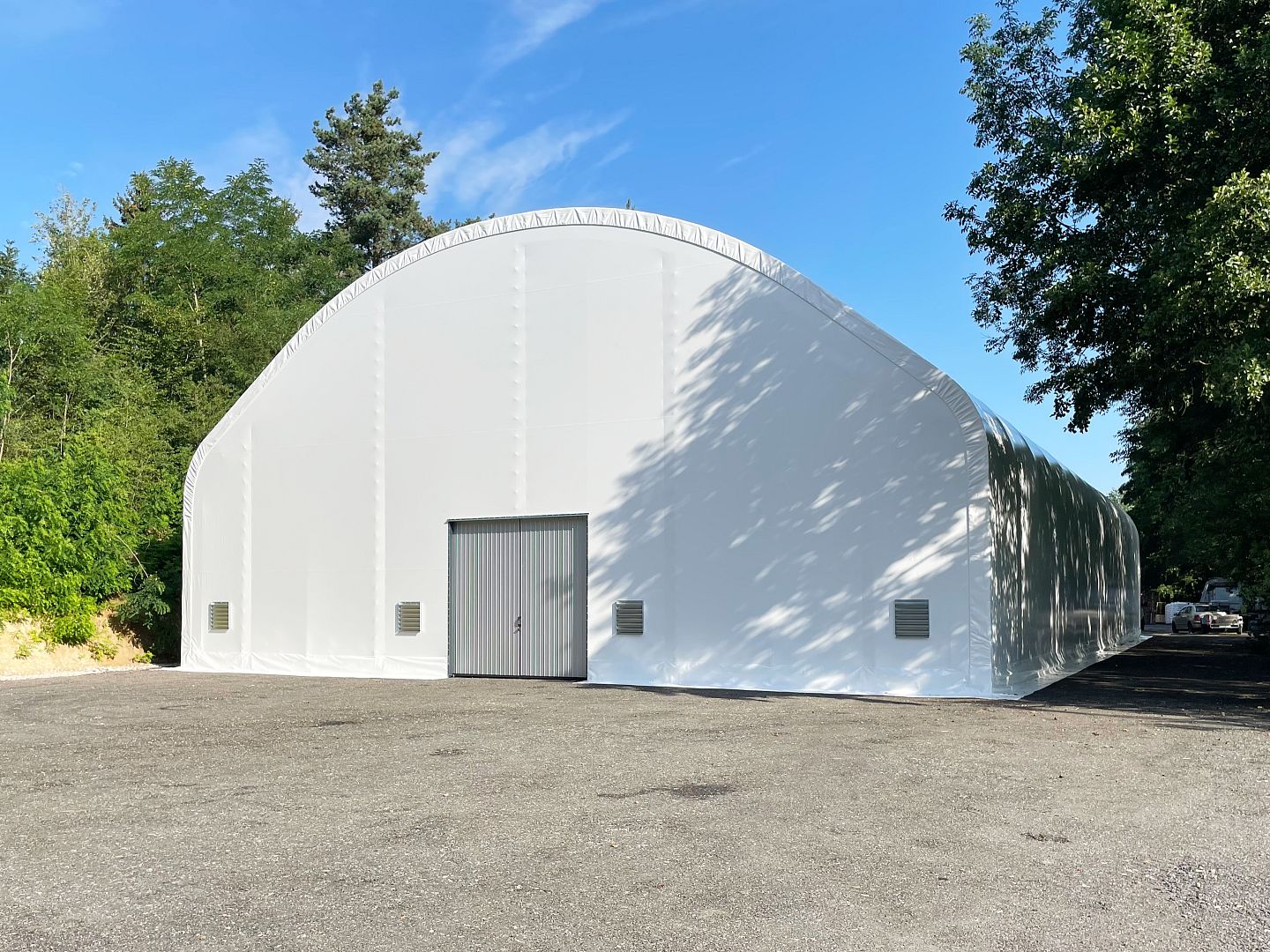

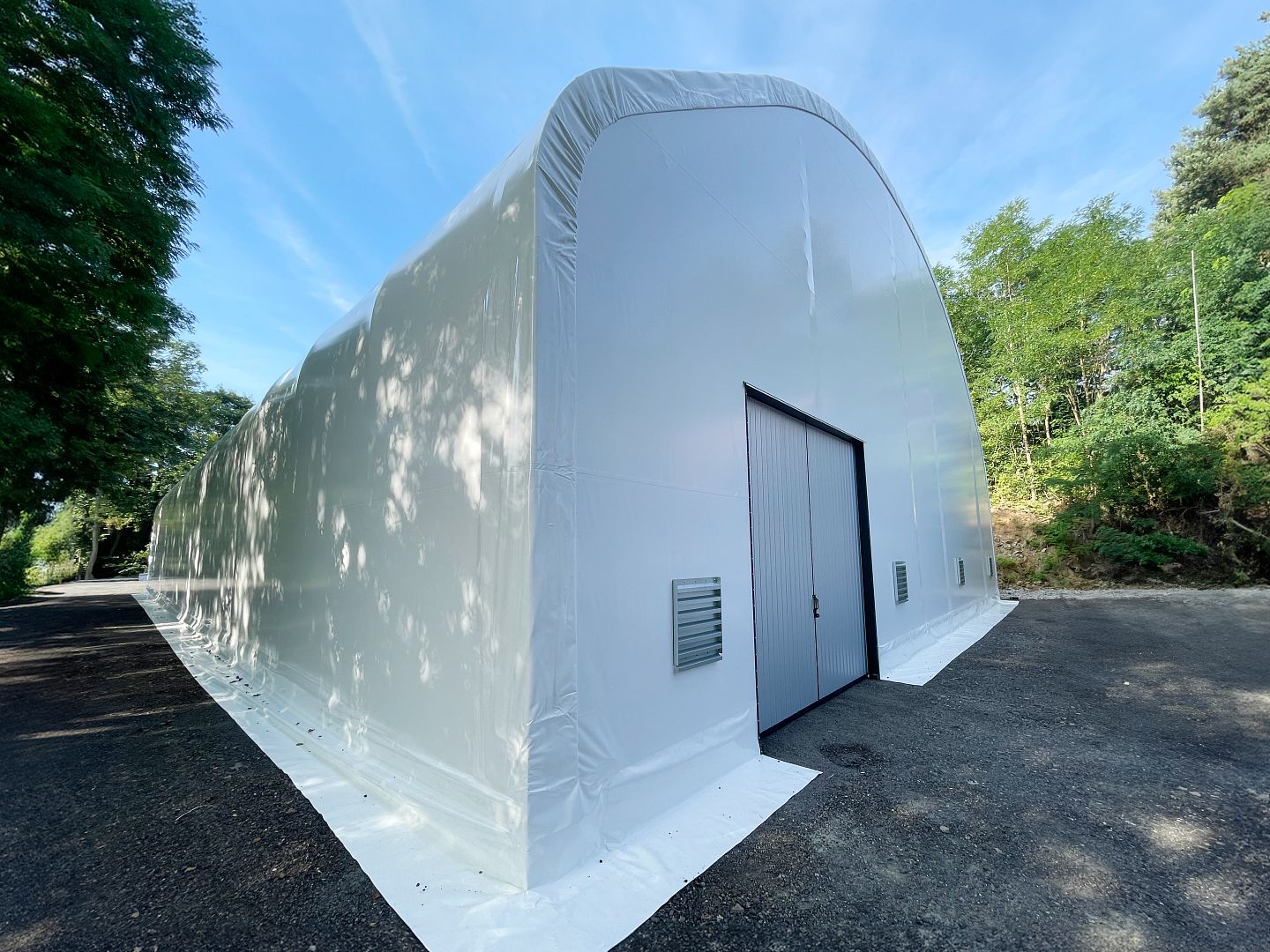

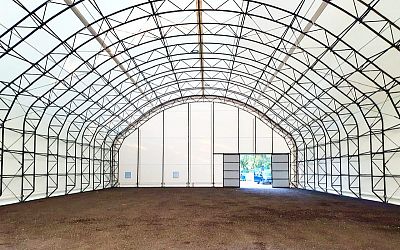

The structure is fully formed by a lattice frame in the shape of an inverted “U”. The prefabricated hall is installed on concrete panels. The hall cladding is made of white technical textile. The hall is located in Snow Load Zone II. Additional features include roof ventilation turbines, wall louvres, and doors.
-
Installed on concrete panels
-
UT lightweight steel structure
-
PVC technical textile cladding
-
8× wall ventilation louvres
-
2× sliding doors (W 3,500 mm × H 3,500 mm) with galvanized steel sheet infill, located at the front of the hall
-
4× roof ventilation turbines LOMANCO BIB 14
-
Eaves flashing above the sliding doors
