- Industrial storage halls
- Date added 2006
Basic parameters of the prefabricated hall
| Construction location | Roveň  |
| Purpose | Storage of finished products |
| Dimensions | 12 x 30 x 3,7 m |
| Hall type | UT – hall with a steel structure |
Description of the prefabricated hall

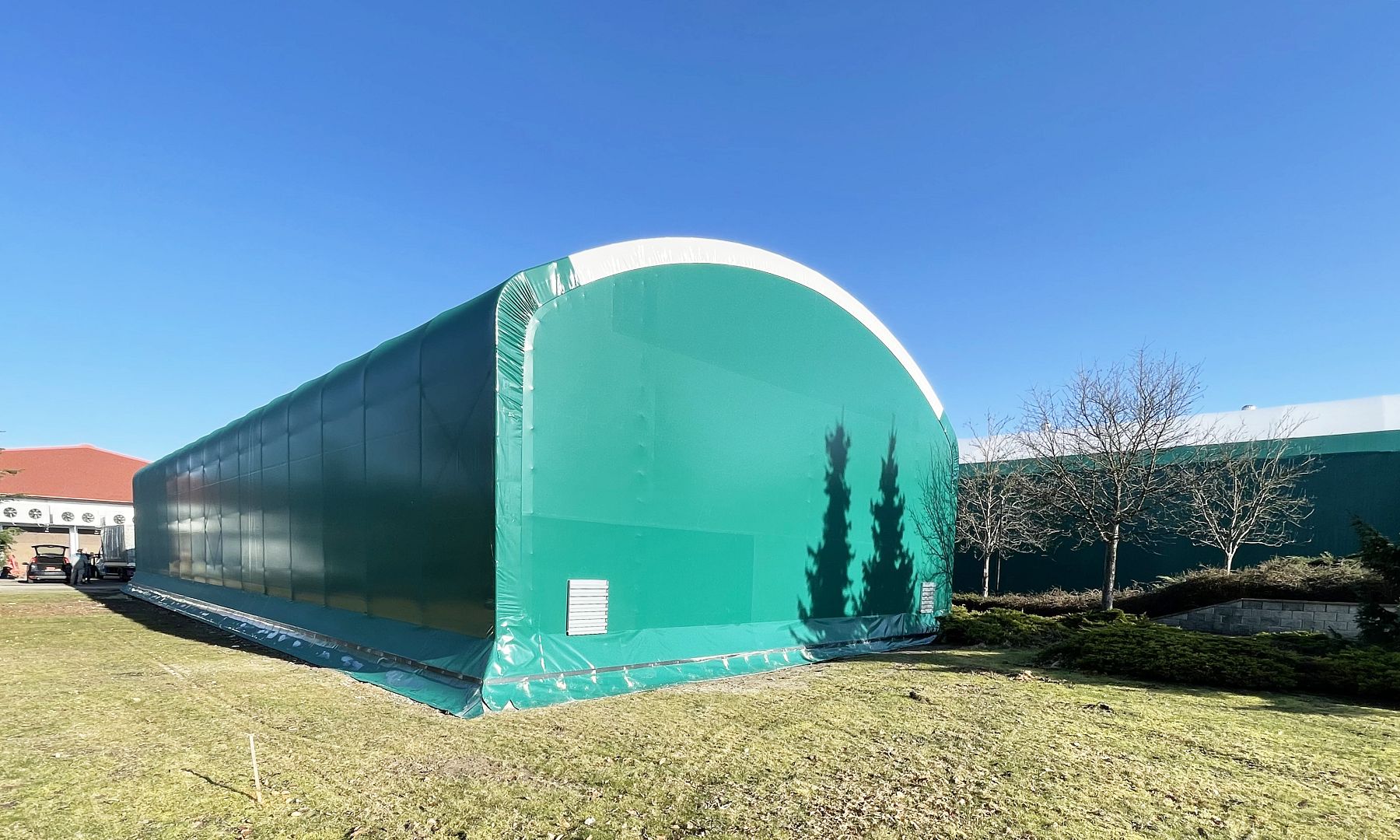

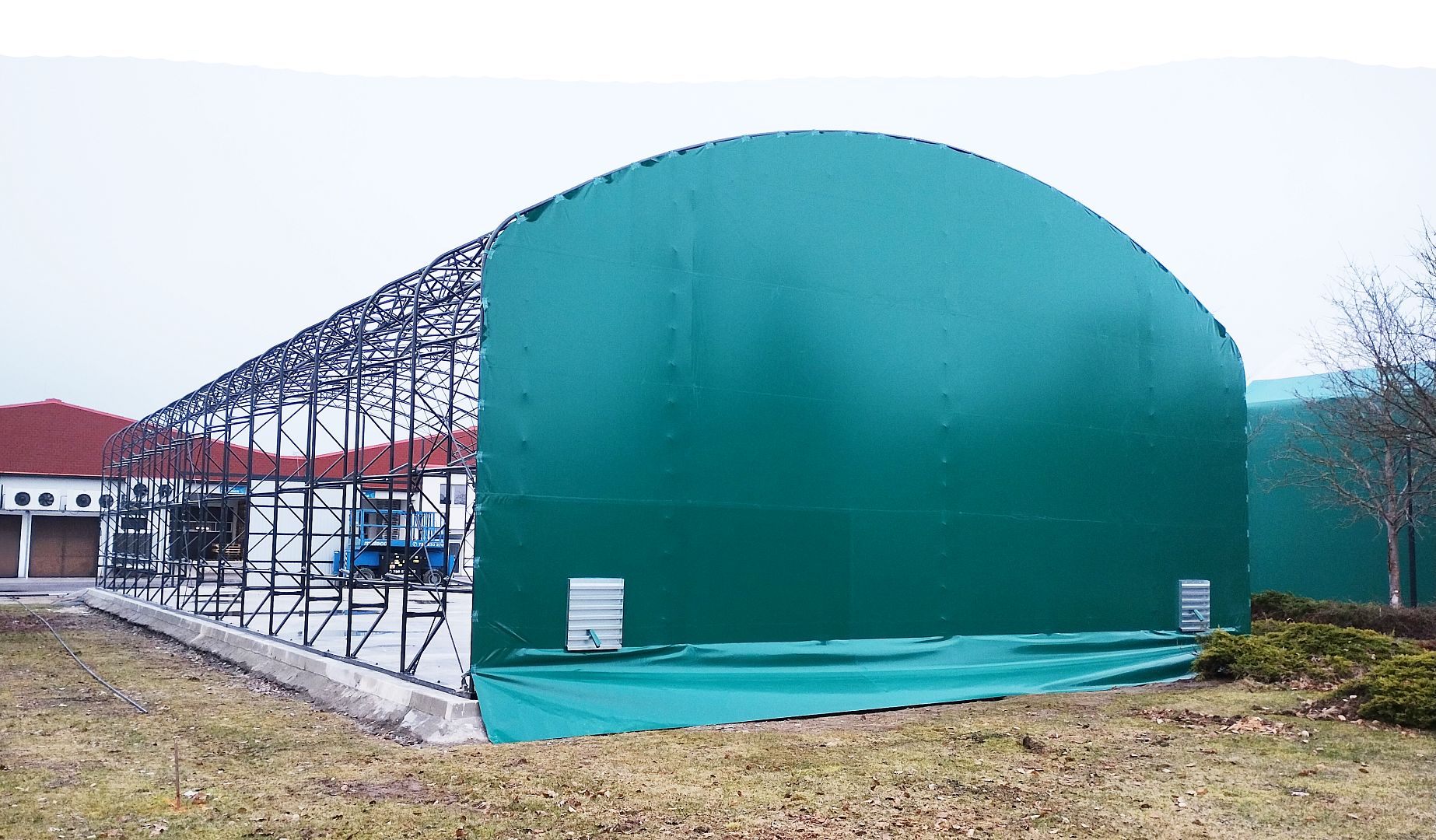

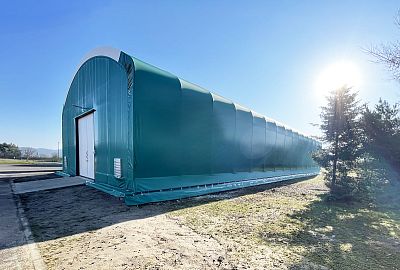

The hall features a fully steel structure and is installed on a concrete base. Sliding doors are located at the front gable end. The hall is clad with highly durable technical textile. The structure is situated in Snow Load Zone V. Additional features include ventilation openings and lighting.
-

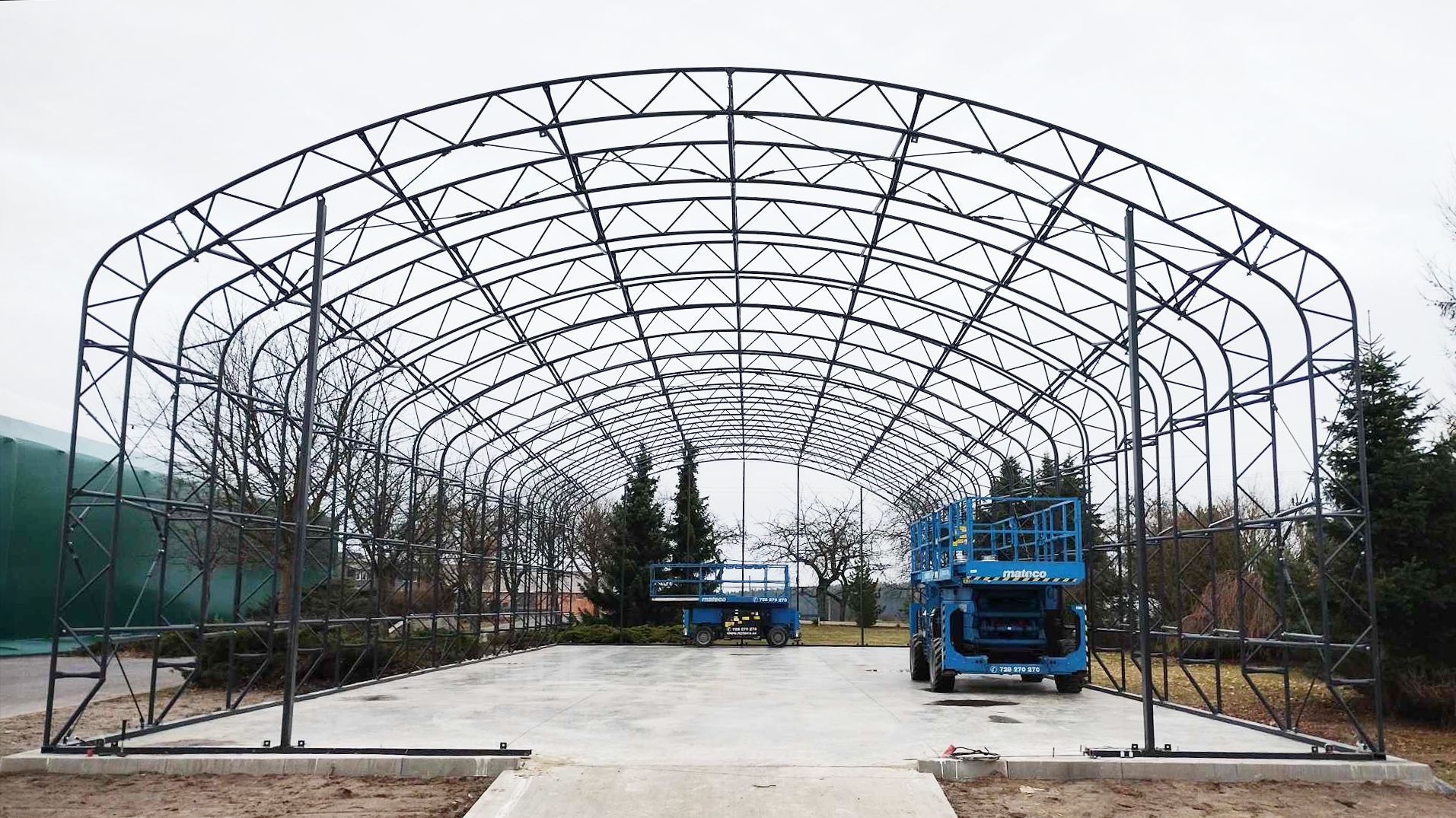

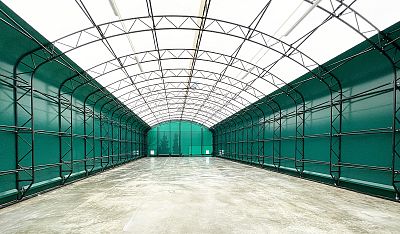

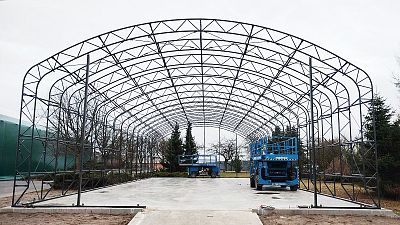

Structure made of circular steel profiles
-

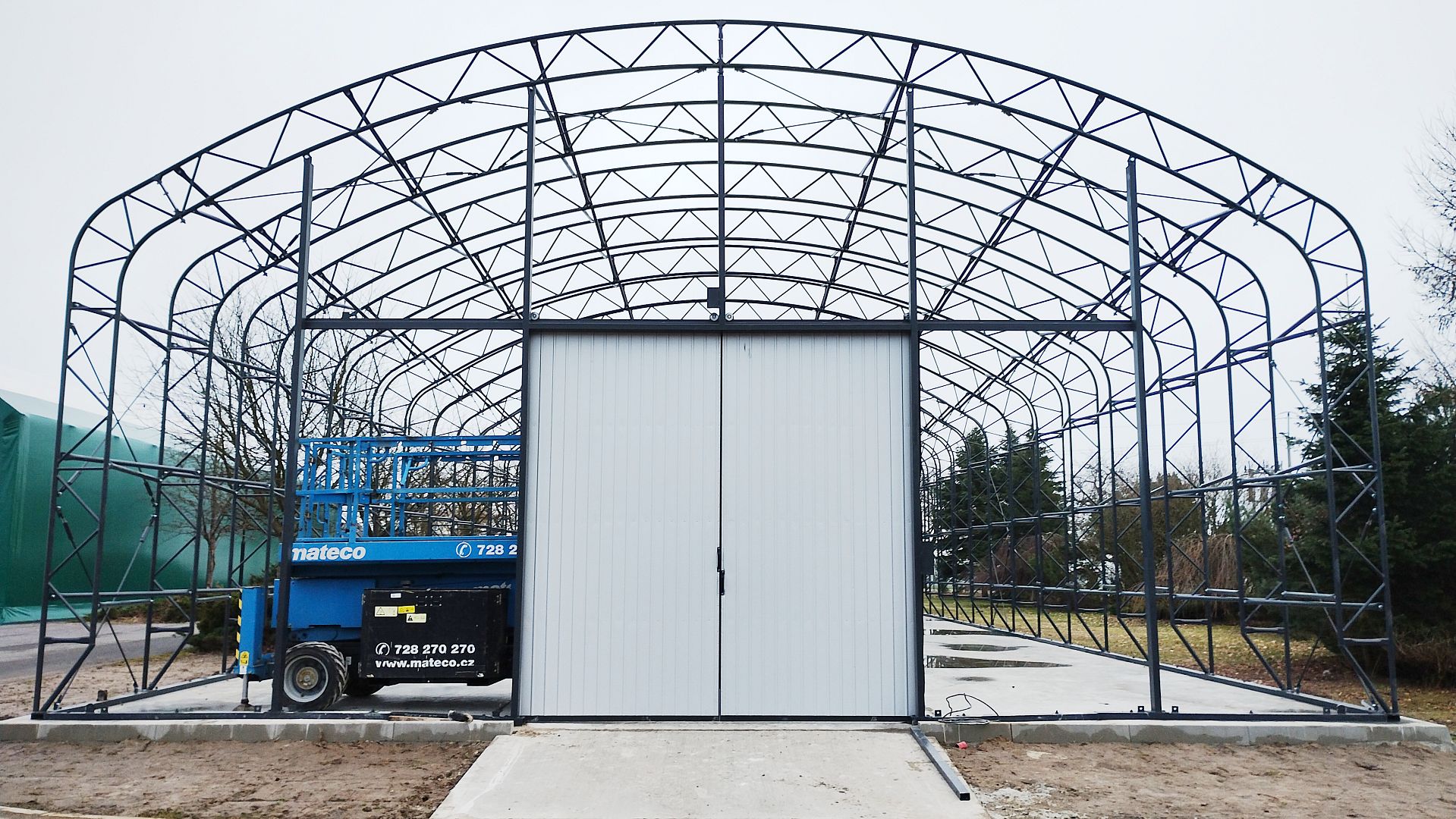

1× sliding door (W 3,500 mm × H 3,500 mm) with galvanized steel sheet infill, located at the front of the hall
-
4× wall ventilation louvres (sheet metal)
-
3× roof ventilation turbines
-
Highly durable technical textile cladding (PES fabric), developed specifically for this type of building; resistant to moisture, temperature changes (-30°C to +70°C), and UV radiation
-
Electrical installation (wiring, sockets, lighting)
