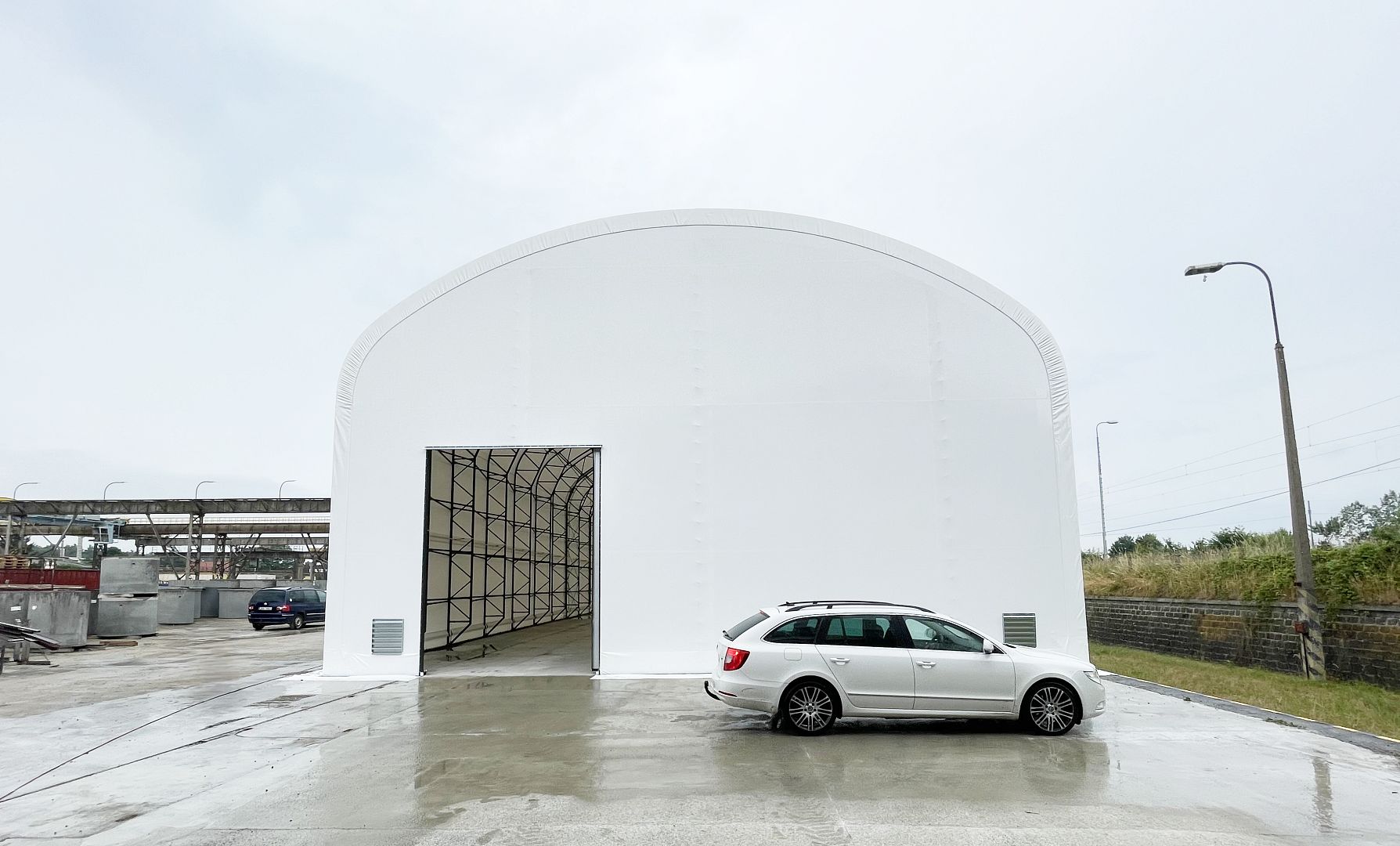

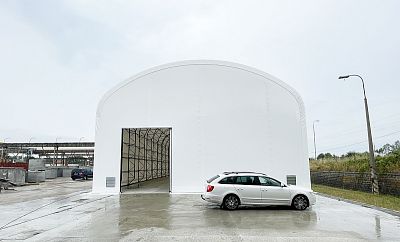

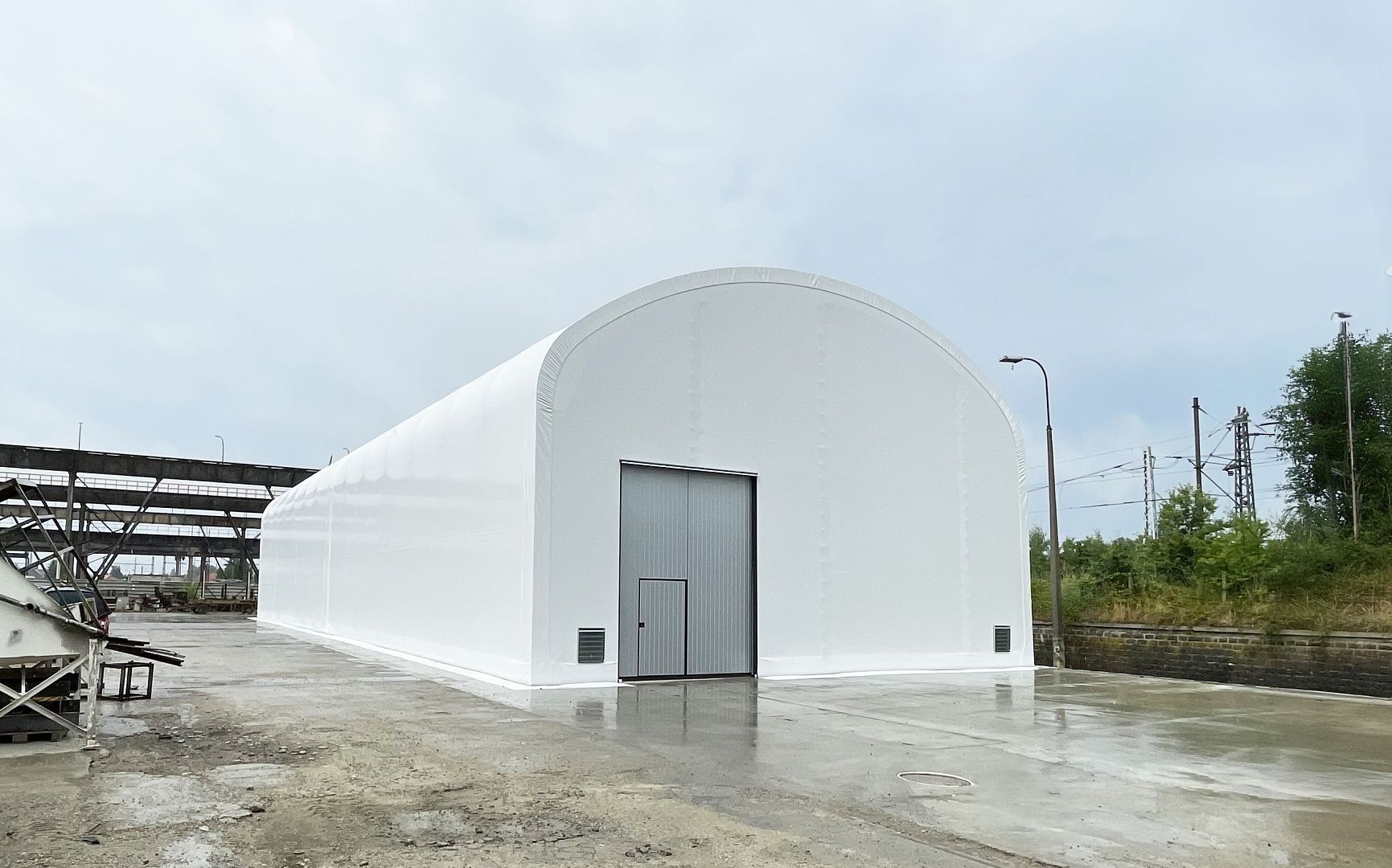

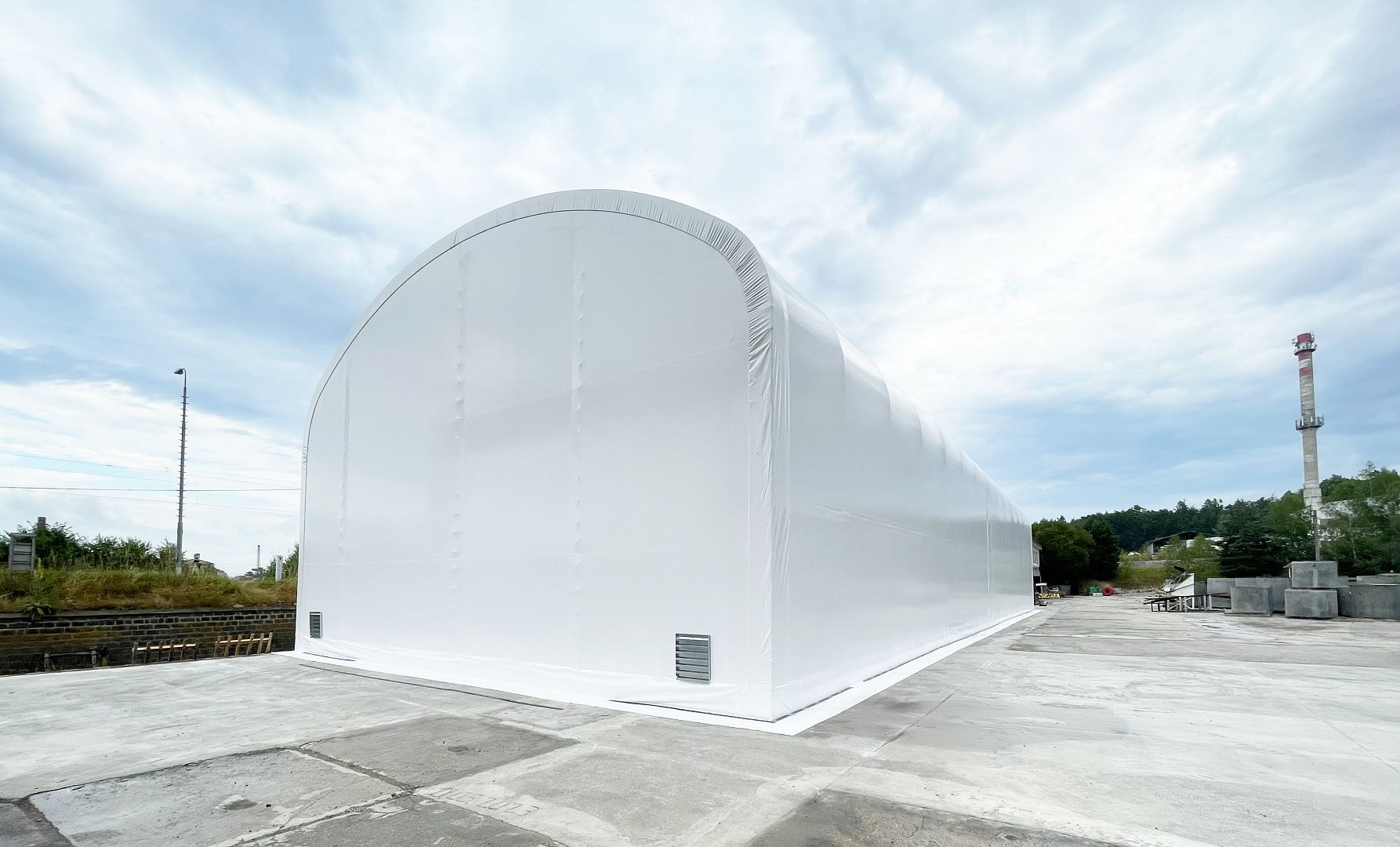

DALUS-Tichelmann s.r.o. Warehouse hall, Žíšov

Basic parameters of the prefabricated hall

Construction site location	Žíšov
Purpose of the building	Warehouse for finished products
Dimensions	15 x 40 x 5,5 m
Type of prefabricated hall structure	UT – hall with a steel truss structure with a semi-circular roof

Description of the prefabricated hall

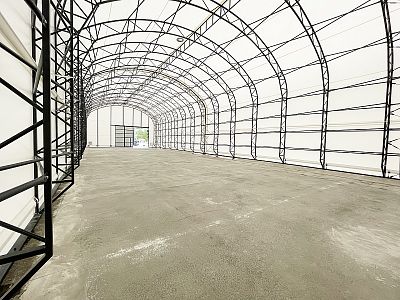

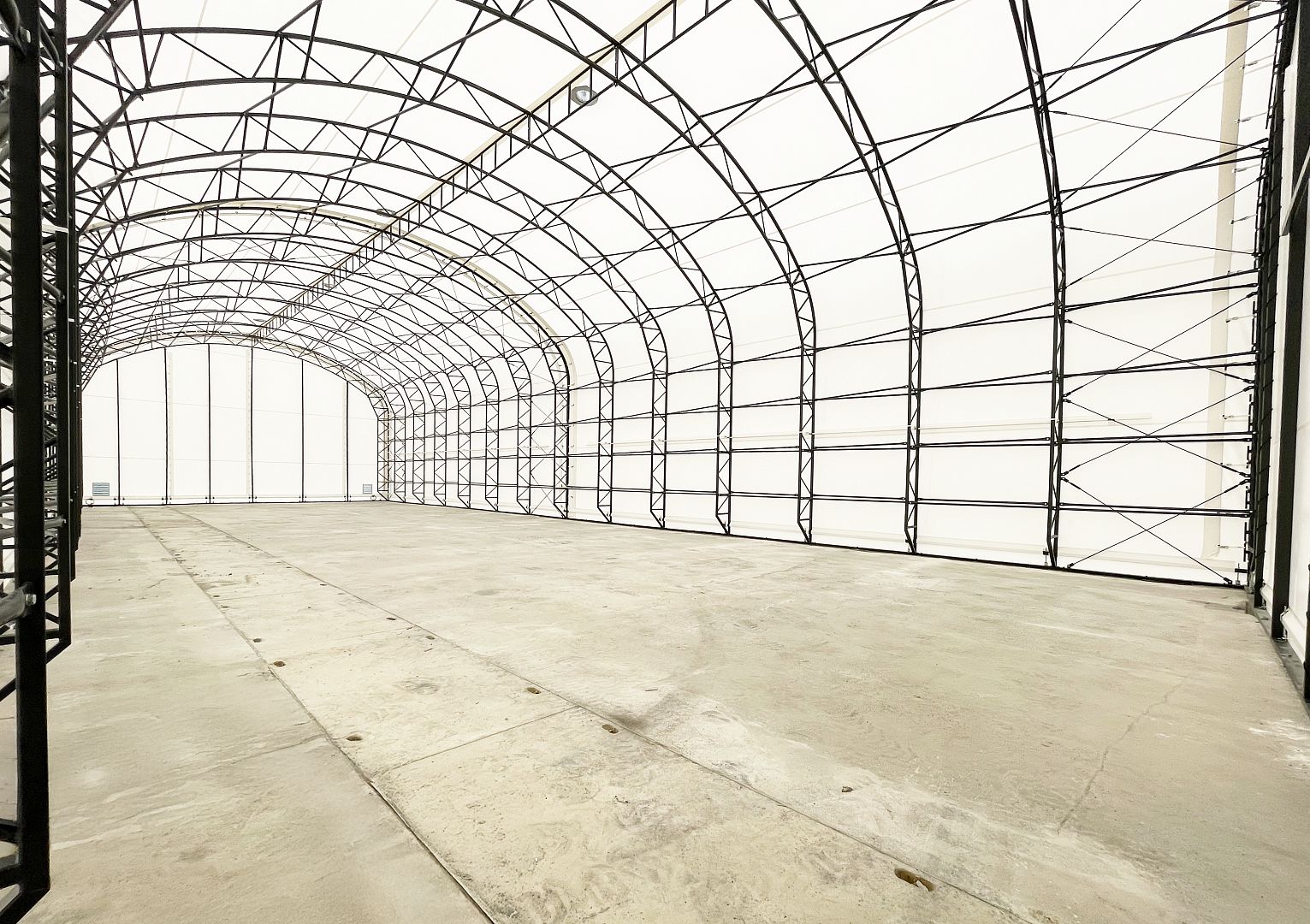

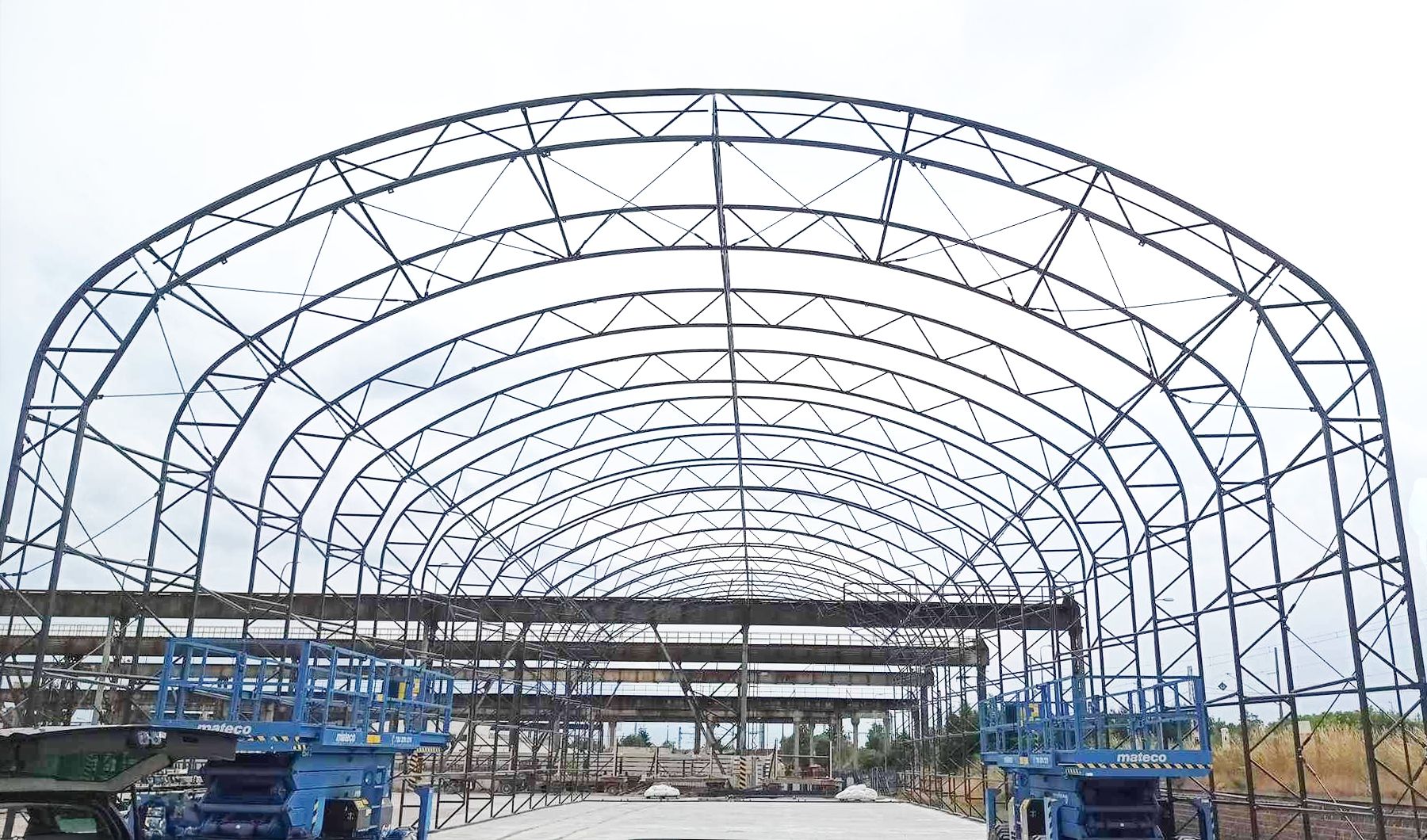

The structure is entirely made of a steel framework. The prefabricated hall is built on a concrete base; sliding gates are located at the front of the hall, and the hall cladding is made of highly durable technical fabric. The prefabricated hall is located in Snow Load Zone II. Additional features include ventilation openings and lighting.

• gutter strip above the sliding gate

• 1x sliding gate, size w. 3,500 mm x h. 4,500 mm, with Zn sheet infill, located at the front of the hall

• 1x door made of Zn sheet, w. 1,100 mm x h. 2,000 mm

• 4x wall ventilation louvers

• 5x roof ventilation turbines

• highly durable technical fabric (PES fabric) developed specifically for this type of building, resistant to moisture, temperature changes (-30°C/+70°C) and UV radiation

• electrical installation (wiring, sockets, lighting)
